Earthing and Short-Circuiting Devices for Crane Conductor Bars
:quality(98)/www.dehn.it/store/f/58100987/HDVORSCHAU/745370a1_16-9.jpg)
:quality(98)/www.dehn.it/store/f/58100987/HDVORSCHAU/745370a1_16-9.jpg)

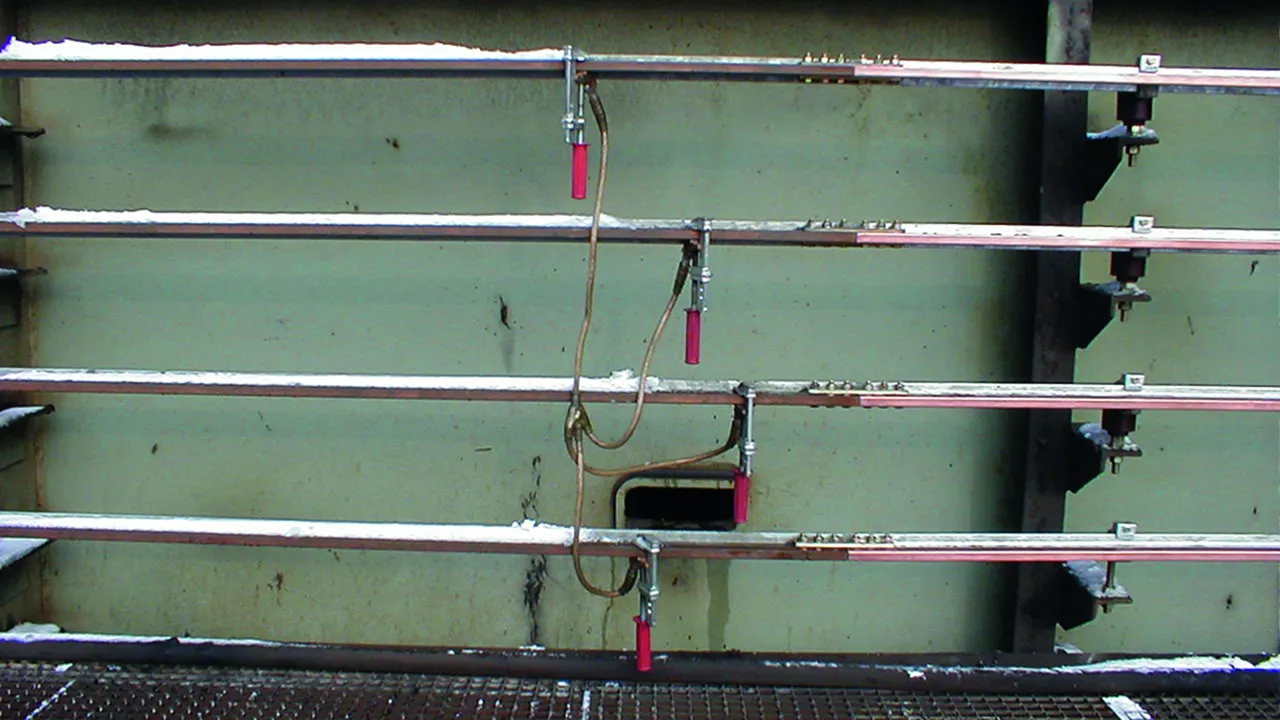

- For insulated or bare conductor bars of cranes and lifting equipment
- Allows to lock the clamping range of the clamps in several positions
- Waterproof, plastic-sheathed cable entries and node unit, with additional ant-kink protection
- Other cable lengths can be selected online via the earthing and short-circuiting configurator
Dettagli
:quality(98)/www.dehn.it/store/f/58100989/HDVORSCHAU/745375az1.jpg)
:quality(98)/www.dehn.it/store/f/58100989/HDVORSCHAU/745375az1.jpg)
:quality(98)/www.dehn.it/store/f/58100988/HDVORSCHAU/745370az1.jpg)
:quality(98)/www.dehn.it/store/f/58100988/HDVORSCHAU/745370az1.jpg)
Art. VH8QTCZ EKV3 25IS ZK VH8QTCZ
GTIN (EAN) 4013364163775, Codice doganale (EU): 85359000, Peso lordo: 5.59 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/58100994/HDVORSCHAU/745370mb_D.jpg)
:quality(98)/www.dehn.it/store/f/58100994/HDVORSCHAU/745370mb_D.jpg)
:quality(98)/www.dehn.it/store/f/58100995/HDVORSCHAU/745370_1.jpg)
:quality(98)/www.dehn.it/store/f/58100995/HDVORSCHAU/745370_1.jpg)
Caratteristiche tecniche
| Clamping range | 55 mm |
| Max. short-circuit current Ik 0.5 s | 7.0 kA |
| Max. short-circuit current Ik 1 s | 4.9 kA |
| Attention: Please state the relevant Variant No. when ordering. | |
Art. VKB2Q6J EKV3 35IS ZK VKB2Q6J
GTIN (EAN) 4013364163829, Codice doganale (EU): 85359000, Peso lordo: 5.75 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/58101010/HDVORSCHAU/745370mb_D.jpg)
:quality(98)/www.dehn.it/store/f/58101010/HDVORSCHAU/745370mb_D.jpg)
:quality(98)/www.dehn.it/store/f/58101011/HDVORSCHAU/745370_1.jpg)
:quality(98)/www.dehn.it/store/f/58101011/HDVORSCHAU/745370_1.jpg)
Caratteristiche tecniche
| Clamping range | 55 mm |
| Max. short-circuit current Ik 0.5 s | 10.0 kA |
| Max. short-circuit current Ik 1 s | 6.9 kA |
| Attention: Please state the relevant Variant No. when ordering. | |
Art. VP6YV4T EKV3 50IS ZK VP6YV4T
GTIN (EAN) 4013364162686, Codice doganale (EU): 85359000, Peso lordo: 6.30 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/58101013/HDVORSCHAU/745370mb_D.jpg)
:quality(98)/www.dehn.it/store/f/58101013/HDVORSCHAU/745370mb_D.jpg)
:quality(98)/www.dehn.it/store/f/58101014/HDVORSCHAU/745370_1.jpg)
:quality(98)/www.dehn.it/store/f/58101014/HDVORSCHAU/745370_1.jpg)
Caratteristiche tecniche
| Clamping range | 55 mm |
| Max. short-circuit current Ik 0.5 s | 14.0 kA |
| Max. short-circuit current Ik 1 s | 9.9 kA |
| Attention: Please state the relevant Variant No. when ordering. | |
Art. VQKTK4T EKV3 25BS ZK VQKTK4T
GTIN (EAN) 4013364163768, Codice doganale (EU): 85359000, Peso lordo: 5.40 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/58101018/HDVORSCHAU/745375mb_D.jpg)
:quality(98)/www.dehn.it/store/f/58101018/HDVORSCHAU/745375mb_D.jpg)
:quality(98)/www.dehn.it/store/f/58101019/HDVORSCHAU/745375_1.jpg)
:quality(98)/www.dehn.it/store/f/58101019/HDVORSCHAU/745375_1.jpg)
Caratteristiche tecniche
| Clamping range | 85 mm |
| Max. short-circuit current Ik 0.5 s | 7.0 kA |
| Max. short-circuit current Ik 1 s | 4.9 kA |
| Attention: Please state the relevant Variant No. when ordering. | |
Art. VN63A91 EKV3 35BS ZK VN63A91
GTIN (EAN) 4013364163812, Codice doganale (EU): 85359000, Peso lordo: 5.56 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/58101033/HDVORSCHAU/745375mb_D.jpg)
:quality(98)/www.dehn.it/store/f/58101033/HDVORSCHAU/745375mb_D.jpg)
:quality(98)/www.dehn.it/store/f/58101034/HDVORSCHAU/745375_1.jpg)
:quality(98)/www.dehn.it/store/f/58101034/HDVORSCHAU/745375_1.jpg)
Caratteristiche tecniche
| Clamping range | 85 mm |
| Max. short-circuit current Ik 0.5 s | 10.0 kA |
| Max. short-circuit current Ik 1 s | 6.9 kA |
| Attention: Please state the relevant Variant No. when ordering. | |
