Fixed Earthing Points

For connecting earth bushings or earth connecting plates in accordance with DIN 48088-2
Welding-type or bolted-type connector for connecting earth connectors with wing nut or wing bolt on the earth cable end
Connectors with M12 or M16 threaded pin
M12 or M16 female thread

Dettagli

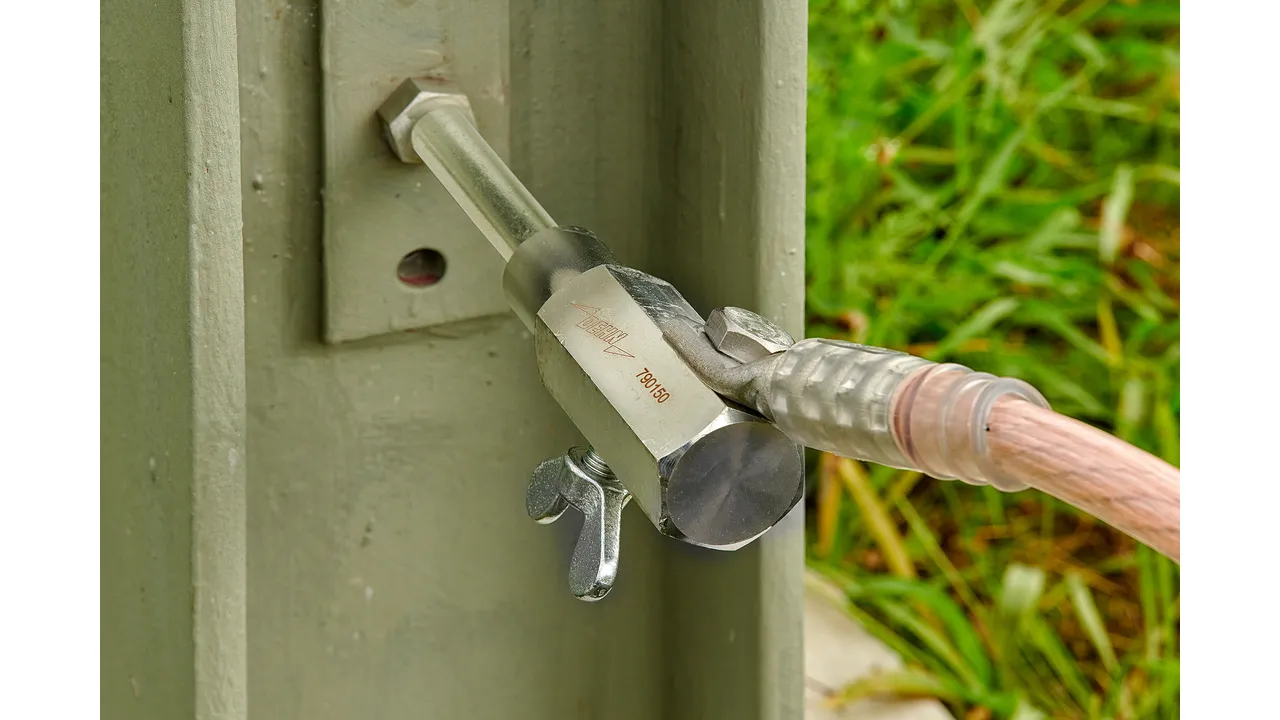

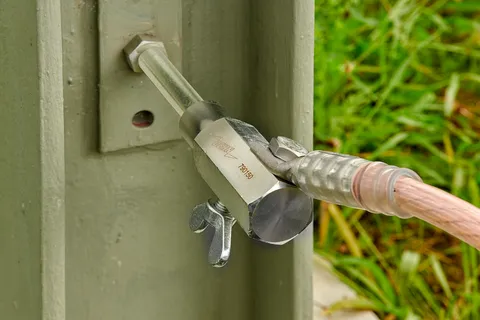

Bolted-type earth connector with M12 threaded pin on an earthed part of an installation.

lorem ipsum — Bolted-type earth connector with M12 threaded pin on an earthed part of an installation.

Ring Groove Fixed Point with Threaded Pin and Nut

2 Prodotti

Art. 790251 EFP 16 RN M12 35 SSM

GTIN (EAN) 4013364089501, Codice doganale (EU): 85359000, Peso lordo: 248.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Caratteristiche tecniche

Dimensions	M12 x 35 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M12-8 / gal Zn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M12 x 35 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M12-8 / gal Zn
Tightening torque	50 ... 65 Nm
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Prodotto 790251 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 790251 è stato aggiunto al carrello.

Apri Web-Shop

Art. 790261 EFP 16 RN M16 45 SSM

GTIN (EAN) 4013364089525, Codice doganale (EU): 85359000, Peso lordo: 277.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Caratteristiche tecniche

Dimensions	M16 x 45 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M16-8 / gal Zn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M16 x 45 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M16-8 / gal Zn
Tightening torque	100 ... 110 Nm
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Prodotto 790261 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 790261 è stato aggiunto al carrello.

Apri Web-Shop

Ring Groove Fixed Point with Female Thread

2 Prodotti

Art. 790250 EFP 16 RN M12

GTIN (EAN) 4013364089495, Codice doganale (EU): 85359000, Peso lordo: 193.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Caratteristiche tecniche

Dimensions	M12
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M12
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Prodotto 790250 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 790250 è stato aggiunto al carrello.

Apri Web-Shop

Art. 790260 EFP 16 RN M16

GTIN (EAN) 4013364089518, Codice doganale (EU): 85359000, Peso lordo: 180.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Caratteristiche tecniche

Dimensions	M16
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M16
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)
