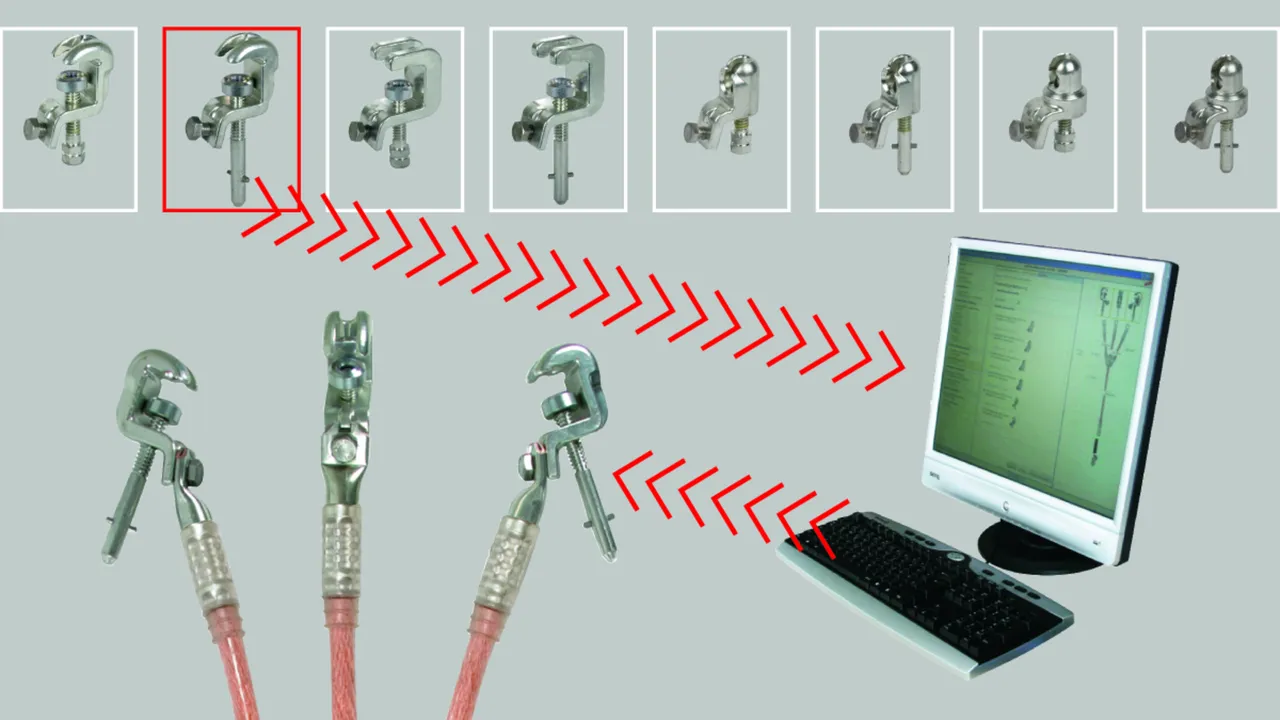

EaS Configurator: Easy online configuration
:quality(98)/www.dehn.it/store/f/54228422/HDVORSCHAU/EuK_Konfigurator_16-9.jpg)
:quality(98)/www.dehn.it/store/f/54228422/HDVORSCHAU/EuK_Konfigurator_16-9.jpg)
- Easy online selection of the suitable EaS device
- Unique laser marking of the EaS device
- Individual configuration
- Permanent plausibility check in the background
- User-friendly interface
- To start the configuration, simply enter the Variant No., Part No. or Product configuration
Dettagli
:quality(98)/www.dehn.it/store/f/54228424/HDVORSCHAU/EuK_Konfigurator_Screen_E.jpg)
:quality(98)/www.dehn.it/store/f/54228424/HDVORSCHAU/EuK_Konfigurator_Screen_E.jpg)
:quality(98)/www.dehn.it/store/f/54228423/HDVORSCHAU/Laserbeschriftung_CuSeil.jpg)
:quality(98)/www.dehn.it/store/f/54228423/HDVORSCHAU/Laserbeschriftung_CuSeil.jpg)
Argomenti simili
Art. VGJD2QX EKV3+1 16 G VGJD2QX
GTIN (EAN) 4013364165373, Codice doganale (EU): 85359000, Peso lordo: 3.12 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228428/HDVORSCHAU/Konfigurator3pol.jpg)
:quality(98)/www.dehn.it/store/f/54228428/HDVORSCHAU/Konfigurator3pol.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 16 mm2 |
| Max. short-circuit current Ik 0.5 s | 4.5 kA |
| Max. short-circuit current Ik 1 s | 3.2 kA |
Art. VRDSN66 EKV3+1 25 G VRDSN66
GTIN (EAN) 4013364163669, Codice doganale (EU): 85359000, Peso lordo: 3.44 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228454/HDVORSCHAU/Konfigurator3pol.jpg)
:quality(98)/www.dehn.it/store/f/54228454/HDVORSCHAU/Konfigurator3pol.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 25 mm2 |
| Max. short-circuit current Ik 0.5 s | 7.0 kA |
| Max. short-circuit current Ik 1 s | 4.9 kA |
Art. V3WJMYY EKV3+1 35 G V3WJMYY
GTIN (EAN) 4013364163676, Codice doganale (EU): 85359000, Peso lordo: 3.81 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228456/HDVORSCHAU/Konfigurator3pol.jpg)
:quality(98)/www.dehn.it/store/f/54228456/HDVORSCHAU/Konfigurator3pol.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 35 mm2 |
| Max. short-circuit current Ik 0.5 s | 10.0 kA |
| Max. short-circuit current Ik 1 s | 6.9 kA |
Art. VU8P6LE EKV3+1 50 G VU8P6LE
GTIN (EAN) 4013364165380, Codice doganale (EU): 85359000, Peso lordo: 4.53 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228458/HDVORSCHAU/Konfigurator3pol.jpg)
:quality(98)/www.dehn.it/store/f/54228458/HDVORSCHAU/Konfigurator3pol.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 50 mm2 |
| Max. short-circuit current Ik 0.5 s | 14.0 kA |
| Max. short-circuit current Ik 1 s | 9.9 kA |
Art. VCEY1U6 EKV3+1 70 G VCEY1U6
GTIN (EAN) 4013364165397, Codice doganale (EU): 85359000, Peso lordo: 5.50 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228460/HDVORSCHAU/Konfigurator3pol.jpg)
:quality(98)/www.dehn.it/store/f/54228460/HDVORSCHAU/Konfigurator3pol.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 70 mm2 |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |
Art. VA3926U EKV3+1 95 G VA3926U
GTIN (EAN) 4013364165403, Codice doganale (EU): 85359000, Peso lordo: 7.19 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228462/HDVORSCHAU/Konfigurator3pol.jpg)
:quality(98)/www.dehn.it/store/f/54228462/HDVORSCHAU/Konfigurator3pol.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 95 mm2 |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |
Art. VAB3PJV EKV3+1 120 G VAB3PJV
GTIN (EAN) 4013364165410, Codice doganale (EU): 85359000, Peso lordo: 8.18 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228464/HDVORSCHAU/Konfigurator3pol.jpg)
:quality(98)/www.dehn.it/store/f/54228464/HDVORSCHAU/Konfigurator3pol.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 120 mm2 |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |
Art. V1KPXFR EKV3+1 150 G V1KPXFR
GTIN (EAN) 4013364165427, Codice doganale (EU): 85359000, Peso lordo: 10.23 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228466/HDVORSCHAU/Konfigurator3pol.jpg)
:quality(98)/www.dehn.it/store/f/54228466/HDVORSCHAU/Konfigurator3pol.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 25 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 25 mm |
| Cable cross-section Cu | 150 mm2 |
| Max. short-circuit current Ik 0.5 s | 42.0 kA |
| Max. short-circuit current Ik 1 s | 29.6 kA |
Art. VD28FAD EKV3+1 50 R VD28FAD
GTIN (EAN) 4013364165434, Codice doganale (EU): 85359000, Peso lordo: 4.11 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228469/HDVORSCHAU/KO3738~1.jpg)
:quality(98)/www.dehn.it/store/f/54228469/HDVORSCHAU/KO3738~1.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 50/25 mm2 |
| Max. short-circuit current Ik 0.5 s | 14.0 kA |
| Max. short-circuit current Ik 1 s | 9.9 kA |
Art. VQYP8B2 EKV3+1 70 R VQYP8B2
GTIN (EAN) 4013364163195, Codice doganale (EU): 85359000, Peso lordo: 7.63 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228471/HDVORSCHAU/VQYP8B2.jpg)
:quality(98)/www.dehn.it/store/f/54228471/HDVORSCHAU/VQYP8B2.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 70/35 mm2 |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |
Art. V5SVXPH EKV3+1 95 R V5SVXPH
GTIN (EAN) 4013364164727, Codice doganale (EU): 85359000, Peso lordo: 6.71 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228473/HDVORSCHAU/V5SVXPH.jpg)
:quality(98)/www.dehn.it/store/f/54228473/HDVORSCHAU/V5SVXPH.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 95/35 mm2 |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |
Art. VTSY9XH EKV3+1 120 R VTSY9XH
GTIN (EAN) 4013364163621, Codice doganale (EU): 85359000, Peso lordo: 6.78 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228475/HDVORSCHAU/KO3738~1.jpg)
:quality(98)/www.dehn.it/store/f/54228475/HDVORSCHAU/KO3738~1.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 20 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 20 mm |
| Cable cross-section Cu | 120/50 mm2 |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |
Art. VHBWUNH EKV3+1 150 R VHBWUNH
GTIN (EAN) 4013364163645, Codice doganale (EU): 85359000, Peso lordo: 8.24 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228477/HDVORSCHAU/KO3738~1.jpg)
:quality(98)/www.dehn.it/store/f/54228477/HDVORSCHAU/KO3738~1.jpg)
Caratteristiche tecniche
| Phase cable end | KKH 25 SK |
| Earth cable end | EAS EK FM 12 |
| For fixed ball point Ø | 25 mm |
| Cable cross-section Cu | 150/50 mm2 |
| Max. short-circuit current Ik 0.5 s | 42.0 kA |
| Max. short-circuit current Ik 1 s | 29.6 kA |
Art. V8MCNWM EKV3+1 16 G V8MCNWM
GTIN (EAN) 4013364165441, Codice doganale (EU): 85359000, Peso lordo: 4.61 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228480/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
:quality(98)/www.dehn.it/store/f/54228480/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 16 mm2 |
| Max. short-circuit current Ik 0.5 s | 4.5 kA |
| Max. short-circuit current Ik 1 s | 3.2 kA |
Art. V8VF7CP EKV3+1 25 G V8VF7CP
GTIN (EAN) 4013364165458, Codice doganale (EU): 85359000, Peso lordo: 4.66 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228482/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
:quality(98)/www.dehn.it/store/f/54228482/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 25 mm2 |
| Max. short-circuit current Ik 0.5 s | 7.0 kA |
| Max. short-circuit current Ik 1 s | 4.9 kA |
Art. V5VN56Z EKV3+1 35 G V5VN56Z
GTIN (EAN) 4013364165465, Codice doganale (EU): 85359000, Peso lordo: 4.98 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228484/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
:quality(98)/www.dehn.it/store/f/54228484/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 35 mm2 |
| Max. short-circuit current Ik 0.5 s | 10.0 kA |
| Max. short-circuit current Ik 1 s | 6.9 kA |
Art. VPH98CT EKV3+1 50 G VPH98CT
GTIN (EAN) 4013364165472, Codice doganale (EU): 85359000, Peso lordo: 5.75 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228486/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
:quality(98)/www.dehn.it/store/f/54228486/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 50 mm2 |
| Max. short-circuit current Ik 0.5 s | 14.0 kA |
| Max. short-circuit current Ik 1 s | 9.9 kA |
Art. VMLM2BZ EKV3+1 70 G VMLM2BZ
GTIN (EAN) 4013364165489, Codice doganale (EU): 85359000, Peso lordo: 6.91 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228488/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
:quality(98)/www.dehn.it/store/f/54228488/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 70 mm2 |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |
Art. VE9HQHJ EKV3+1 95 G VE9HQHJ
GTIN (EAN) 4013364165496, Codice doganale (EU): 85359000, Peso lordo: 8.29 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228490/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
:quality(98)/www.dehn.it/store/f/54228490/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 95 mm2 |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |
Art. VKZLVU3 EKV3+1 120 G VKZLVU3
GTIN (EAN) 4013364165502, Codice doganale (EU): 85359000, Peso lordo: 9.28 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228492/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
:quality(98)/www.dehn.it/store/f/54228492/HDVORSCHAU/Konfigurator3pol_Uni.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 120 mm2 |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |
Art. VMBDCM1 EKV3+1 50 R VMBDCM1
GTIN (EAN) 4013364165519, Codice doganale (EU): 85359000, Peso lordo: 5.25 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228495/HDVORSCHAU/KO3A65~1.jpg)
:quality(98)/www.dehn.it/store/f/54228495/HDVORSCHAU/KO3A65~1.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 50/25 mm2 |
| Max. short-circuit current Ik 0.5 s | 14.0 kA |
| Max. short-circuit current Ik 1 s | 9.9 kA |
Art. V4RJ7A2 EKV3+1 70 R V4RJ7A2
GTIN (EAN) 4013364165526, Codice doganale (EU): 85359000, Peso lordo: 5.92 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228497/HDVORSCHAU/V4RJ7A2.jpg)
:quality(98)/www.dehn.it/store/f/54228497/HDVORSCHAU/V4RJ7A2.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 70/35 mm2 |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |
Art. VRAB9WB EKV3+1 95 R VRAB9WB
GTIN (EAN) 4013364165533, Codice doganale (EU): 85359000, Peso lordo: 7.10 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228499/HDVORSCHAU/KO3A65~1.jpg)
:quality(98)/www.dehn.it/store/f/54228499/HDVORSCHAU/KO3A65~1.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 95/35 mm2 |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |
Art. VACNLP8 EKV3+1 120 R VACNLP8
GTIN (EAN) 4013364165540, Codice doganale (EU): 85359000, Peso lordo: 7.89 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228501/HDVORSCHAU/KO3A65~1.jpg)
:quality(98)/www.dehn.it/store/f/54228501/HDVORSCHAU/KO3A65~1.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 25 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 120/50 mm2 |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |
Art. VE5E8FZ EKV1+1 16 VE5E8FZ
GTIN (EAN) 4013364165557, Codice doganale (EU): 85359000, Peso lordo: 3.67 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228504/HDVORSCHAU/Konfigurator1pol.jpg)
:quality(98)/www.dehn.it/store/f/54228504/HDVORSCHAU/Konfigurator1pol.jpg)
Caratteristiche tecniche
| Phase cable end | PSK 4 30 SQL |
| Earth cable end | EFK FL40 SKN |
| Clamping range Ø | 4 ... 30 mm |
| Cable cross-section Cu | 16 mm2 |
| Max. short-circuit current Ik 0.5 s | 4.5 kA |
| Max. short-circuit current Ik 1 s | 3.2 kA |
Art. VF33XR2 EKV1+1 25 VF33XR2
GTIN (EAN) 4013364165564, Codice doganale (EU): 85359000, Peso lordo: 10.00 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228506/HDVORSCHAU/Konfigurator1pol.jpg)
:quality(98)/www.dehn.it/store/f/54228506/HDVORSCHAU/Konfigurator1pol.jpg)
Caratteristiche tecniche
| Phase cable end | PSK 4 30 SQL |
| Earth cable end | EFK FL40 SKN |
| Clamping range Ø | 4 ... 30 mm |
| Cable cross-section Cu | 25 mm2 |
| Max. short-circuit current Ik 0.5 s | 7.0 kA |
| Max. short-circuit current Ik 1 s | 4.9 kA |
Art. V43FCV8 EKV1+1 35 V43FCV8
GTIN (EAN) 4013364165571, Codice doganale (EU): 85359000, Peso lordo: 4.58 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228508/HDVORSCHAU/Konfigurator1pol.jpg)
:quality(98)/www.dehn.it/store/f/54228508/HDVORSCHAU/Konfigurator1pol.jpg)
Caratteristiche tecniche
| Phase cable end | PSK 4 30 SQL |
| Earth cable end | EFK FL40 SKN |
| Clamping range Ø | 4 ... 30 mm |
| Cable cross-section Cu | 35 mm2 |
| Max. short-circuit current Ik 0.5 s | 10.0 kA |
| Max. short-circuit current Ik 1 s | 6.9 kA |
Art. V2KWXUL EKV1+1 50 V2KWXUL
GTIN (EAN) 4013364165588, Codice doganale (EU): 85359000, Peso lordo: 5.46 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228510/HDVORSCHAU/Konfigurator1pol.jpg)
:quality(98)/www.dehn.it/store/f/54228510/HDVORSCHAU/Konfigurator1pol.jpg)
Caratteristiche tecniche
| Phase cable end | PSK 4 30 SQL |
| Earth cable end | EFK FL40 SKN |
| Clamping range Ø | 4 ... 30 mm |
| Cable cross-section Cu | 50 mm2 |
| Max. short-circuit current Ik 0.5 s | 14.0 kA |
| Max. short-circuit current Ik 1 s | 9.9 kA |
Art. VRP32FL EKV1+1 70 VRP32FL
GTIN (EAN) 4013364165595, Codice doganale (EU): 85359000, Peso lordo: 6.59 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228512/HDVORSCHAU/Konfigurator1pol.jpg)
:quality(98)/www.dehn.it/store/f/54228512/HDVORSCHAU/Konfigurator1pol.jpg)
Caratteristiche tecniche
| Phase cable end | PSK 4 30 SQL |
| Earth cable end | EFK FL40 SKN |
| Clamping range Ø | 4 ... 30 mm |
| Cable cross-section Cu | 70 mm2 |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |
Art. V2WPYVF EKV1+1 95 V2WPYVF
GTIN (EAN) 4013364165601, Codice doganale (EU): 85359000, Peso lordo: 8.44 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228514/HDVORSCHAU/Konfigurator1pol.jpg)
:quality(98)/www.dehn.it/store/f/54228514/HDVORSCHAU/Konfigurator1pol.jpg)
Caratteristiche tecniche
| Phase cable end | PSK 10 65 SQL |
| Earth cable end | UEK 30 HG |
| Clamping range Ø | 10 ... 65 mm |
| Cable cross-section Cu | 95 mm2 |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |
Art. VG4GXHQ EKV1+1 120 VG4GXHQ
GTIN (EAN) 4013364165618, Codice doganale (EU): 85359000, Peso lordo: 10.00 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228516/HDVORSCHAU/Konfigurator1pol.jpg)
:quality(98)/www.dehn.it/store/f/54228516/HDVORSCHAU/Konfigurator1pol.jpg)
Caratteristiche tecniche
| Phase cable end | PSK 10 65 SQL |
| Earth cable end | UEK 30 HG |
| Clamping range Ø | 10 ... 65 mm |
| Cable cross-section Cu | 120 mm2 |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |
Art. VMZDL8N EKV1+1 16 VMZDL8N
GTIN (EAN) 4013364165625, Codice doganale (EU): 85359000, Peso lordo: 2.87 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228519/HDVORSCHAU/Konfigurator1pol_2.jpg)
:quality(98)/www.dehn.it/store/f/54228519/HDVORSCHAU/Konfigurator1pol_2.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 30 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 16 mm2 |
| Max. short-circuit current Ik 0.5 s | 4.5 kA |
| Max. short-circuit current Ik 1 s | 3.2 kA |
Art. VB1DETL EKV1+1 25 VB1DETL
GTIN (EAN) 4013364165632, Codice doganale (EU): 85359000, Peso lordo: 3.19 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228521/HDVORSCHAU/Konfigurator1pol_2.jpg)
:quality(98)/www.dehn.it/store/f/54228521/HDVORSCHAU/Konfigurator1pol_2.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 30 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 25 mm2 |
| Max. short-circuit current Ik 0.5 s | 7.0 kA |
| Max. short-circuit current Ik 1 s | 4.9 kA |
Art. V8PPJEF EKV1+1 35 V8PPJEF
GTIN (EAN) 4013364165649, Codice doganale (EU): 85359000, Peso lordo: 4.14 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228523/HDVORSCHAU/Konfigurator1pol_2.jpg)
:quality(98)/www.dehn.it/store/f/54228523/HDVORSCHAU/Konfigurator1pol_2.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 30 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 35 mm2 |
| Max. short-circuit current Ik 0.5 s | 10.0 kA |
| Max. short-circuit current Ik 1 s | 6.9 kA |
Art. VQY44GL EKV1+1 50 VQY44GL
GTIN (EAN) 4013364165656, Codice doganale (EU): 85359000, Peso lordo: 4.66 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228525/HDVORSCHAU/Konfigurator1pol_2.jpg)
:quality(98)/www.dehn.it/store/f/54228525/HDVORSCHAU/Konfigurator1pol_2.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 30 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 50 mm2 |
| Max. short-circuit current Ik 0.5 s | 14.0 kA |
| Max. short-circuit current Ik 1 s | 9.9 kA |
Art. VFZ17TJ EKV1+1 70 VFZ17TJ
GTIN (EAN) 4013364165663, Codice doganale (EU): 85359000, Peso lordo: 6.15 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228527/HDVORSCHAU/Konfigurator1pol_2.jpg)
:quality(98)/www.dehn.it/store/f/54228527/HDVORSCHAU/Konfigurator1pol_2.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 30 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 70 mm2 |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |
Art. VWBDMPS EKV1+1 95 VWBDMPS
GTIN (EAN) 4013364165670, Codice doganale (EU): 85359000, Peso lordo: 7.59 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228529/HDVORSCHAU/Konfigurator1pol_2.jpg)
:quality(98)/www.dehn.it/store/f/54228529/HDVORSCHAU/Konfigurator1pol_2.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 30 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 95 mm2 |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |
Art. V3CM9FR EKV1+1 120 V3CM9FR
GTIN (EAN) 4013364165687, Codice doganale (EU): 85359000, Peso lordo: 8.80 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/www.dehn.it/store/f/54228531/HDVORSCHAU/Konfigurator1pol_2.jpg)
:quality(98)/www.dehn.it/store/f/54228531/HDVORSCHAU/Konfigurator1pol_2.jpg)
Caratteristiche tecniche
| Phase cable end | UK 25 SQ |
| Earth cable end | UEK 30 HG |
| For fixed ball point Ø | 20 / 25 mm |
| For T pins with a collar width of | 15 mm |
| Rd / Fl clamping range | 20 mm |
| Cable cross-section Cu | 120 mm2 |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |
