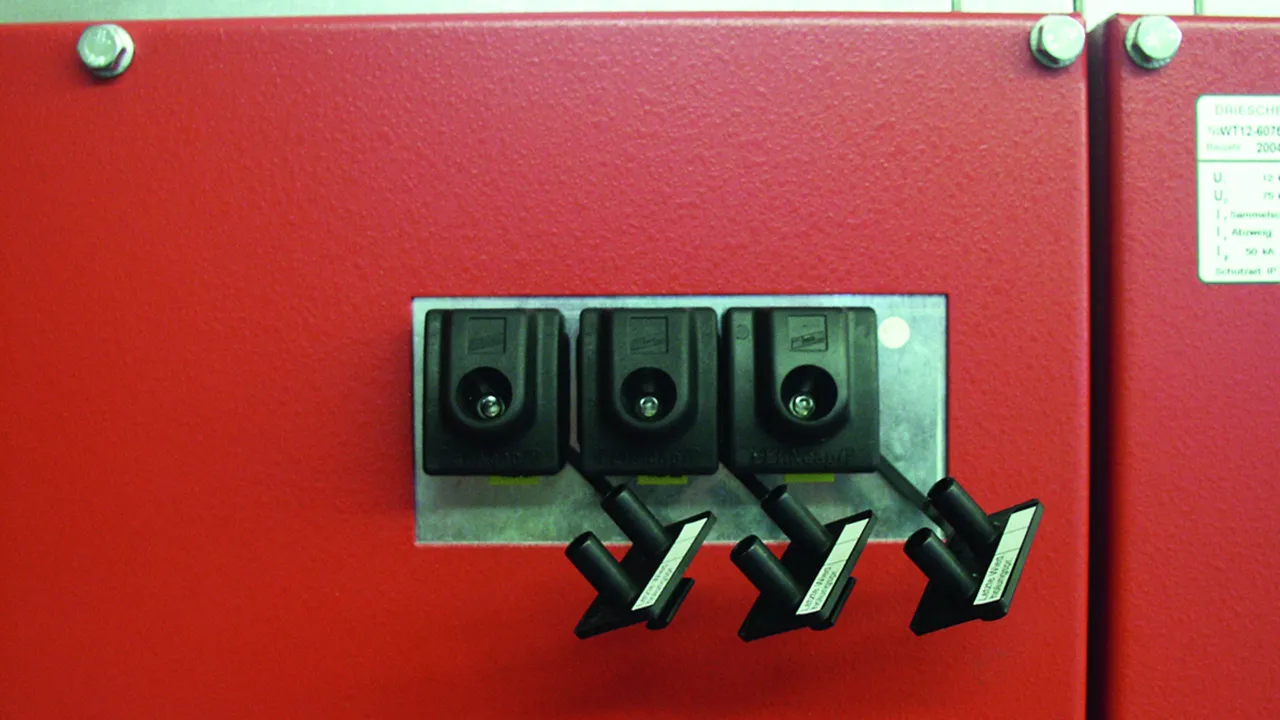

DEHNcap/P Voltage Indicator

Easy verification of isolation from supply voltageCost-effective

DEHNcap/P-HR

1 Prodotto

GTIN (EAN) 4013364069541, Codice doganale (EU): 90303320, Peso lordo: 60.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Caratteristiche tecniche

Dimensions	40 x 48 x 35 mm
Plug spacing	19 mm
Indication threshold (HR system)	90 V
Input impedance (HR system)	36 MOhms

Nominal voltage (U_N )	1 ... 45 kV
Frequency	50 Hz
Dimensions	40 x 48 x 35 mm
Plug spacing	19 mm
Indication threshold (HR system)	90 V
Input impedance (HR system)	36 MOhms
Standard	EN/IEC 61243-5 (DIN VDE 0682-415)
Temperature range	–25 °C ... +55 °C
Degree of protection	IP 66
Type of device	Voltage indicator
Use	Can also be used as permanent voltage indicator
Indication	Visual
Type of system	HR
Self-testing element	No
