PHE III Voltage Detector

Safe verification of isolation from supply voltage

Reliable indication
Easy to use
Cost-effective / space-saving transport

Dettagli

lorem ipsum — Testing with integrated electrode

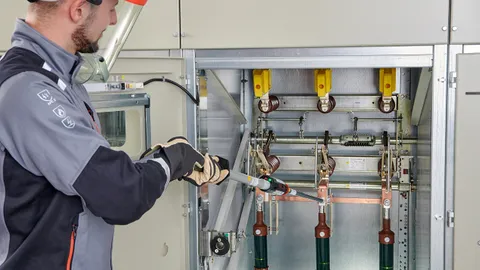

Plugging a HV STK extension handle into an IS PHE STK insulating stick

Testing with screwed-on V-shaped electrode

Universal gear coupling allows to adjust the angle of the voltage detector

Nominal Voltages up to 30 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

5 Prodotti

Art. 767703 PHE3 3 S

GTIN (EAN) 4013364070899, Codice doganale (EU): 90303370, Peso lordo: 1.71 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	3 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767703 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767703 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767706 PHE3 6 S

GTIN (EAN) 4013364070837, Codice doganale (EU): 90303370, Peso lordo: 1.71 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	6 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767706 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767706 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767710 PHE3 10 S

GTIN (EAN) 4013364070851, Codice doganale (EU): 90303370, Peso lordo: 1.71 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	10 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767710 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767710 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767720 PHE3 20 S

GTIN (EAN) 4013364070844, Codice doganale (EU): 90303370, Peso lordo: 1.89 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	20 kV
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767720 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767720 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767730 PHE3 30 S

GTIN (EAN) 4013364070813, Codice doganale (EU): 90303370, Peso lordo: 1.83 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	30 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767730 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767730 è stato aggiunto al carrello.

Apri Web-Shop

Nominal Voltage Ranges up to 30 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

3 Prodotti

Art. 767711 PHE3 3 10 S

GTIN (EAN) 4013364070820, Codice doganale (EU): 90303370, Peso lordo: 1.86 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767711 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767711 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767721 PHE3 6 20 S

GTIN (EAN) 4013364070868, Codice doganale (EU): 90303370, Peso lordo: 1.93 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767721 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767721 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767731 PHE3 10 30 S

GTIN (EAN) 4013364070875, Codice doganale (EU): 90303370, Peso lordo: 1.99 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767731 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767731 è stato aggiunto al carrello.

Apri Web-Shop

Nominal Voltage Ranges up to 30 kV / 50 Hz, M12 Thread, switchable

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of 3 kV to 10 kV. The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

1 Prodotto

Art. 767733 PHE3 U 3 30 S

GTIN (EAN) 4013364070882, Codice doganale (EU): 90303370, Peso lordo: 1.99 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor switchgear installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767733 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767733 è stato aggiunto al carrello.

Apri Web-Shop

Nominal Voltages up to 25 kV / 50 Hz

For the overhead contact lines of electric railways.
Category "S" for single-ended monophase systems.

1 Prodotto

Art. 767125 PHE3 25 S 50 1P

GTIN (EAN) 4013364130319, Codice doganale (EU): 90303370, Peso lordo: 1.96 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	25 kV
Total length (l_G )	1680 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	25 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1680 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Outdoor installations
Application	Overhead contact lines of electric vehicles
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767125 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767125 è stato aggiunto al carrello.

Apri Web-Shop

Nominal Voltages up to 30 kV / 50 Hz, Gear Coupling

Category "S" for switchgear installations and overhead lines.

5 Prodotti

Art. 767903 PHE3 3 S ZK

GTIN (EAN) 4013364134737, Codice doganale (EU): 90303370, Peso lordo: 1692.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	3 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767903 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767903 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767906 PHE3 6 S ZK

GTIN (EAN) 4013364134744, Codice doganale (EU): 90303370, Peso lordo: 1692.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	6 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767906 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767906 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767910 PHE3 10 S ZK

GTIN (EAN) 4013364134751, Codice doganale (EU): 90303370, Peso lordo: 1692.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	10 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767910 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767910 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767920 PHE3 20 S ZK

GTIN (EAN) 4013364134768, Codice doganale (EU): 90303370, Peso lordo: 1.80 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	20 kV
Total length (l_G )	1300 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1300 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767920 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767920 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767930 PHE3 30 S ZK

GTIN (EAN) 4013364134775, Codice doganale (EU): 90303370, Peso lordo: 1.87 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	30 kV
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767930 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767930 è stato aggiunto al carrello.

Apri Web-Shop

Nominal Voltage Ranges up to 30 kV / 50 Hz, Gear Coupling

Category "S" for switchgear installations and overhead lines.

3 Prodotti

Art. 767941 PHE3 3 10 S ZK

GTIN (EAN) 4013364134782, Codice doganale (EU): 90303370, Peso lordo: 1.87 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767941 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767941 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767951 PHE3 6 20 S ZK

GTIN (EAN) 4013364134799, Codice doganale (EU): 90303370, Peso lordo: 1.96 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1645 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1645 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767951 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767951 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767961 PHE3 10 30 S ZK

GTIN (EAN) 4013364134805, Codice doganale (EU): 90303370, Peso lordo: 2.02 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767961 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767961 è stato aggiunto al carrello.

Apri Web-Shop

Nominal Voltage Ranges up to 36 kV / 50 Hz, Gear Coupling, switchable

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of (3 kV to 10 kV or 6 kV to 20 kV). The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

2 Prodotti

Art. 767960 PHE3 U 3 30 S ZK

GTIN (EAN) 4013364134812, Codice doganale (EU): 90303370, Peso lordo: 2.02 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767960 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767960 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767944 PHE3 U 6 36 S SN7728

GTIN (EAN) 4013364277731, Codice doganale (EU): 90303370, Peso lordo: 2.16 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	6 ... 20 / 20 ... 36 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	6 ... 20 / 20 ... 36 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767944 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767944 è stato aggiunto al carrello.

Apri Web-Shop

Nominal Voltage Ranges up to 30 kV / 50 Hz, Test Kit, Thread M12

With two test prods of Category "S" for switchgear installations and overhead lines and of Category "L" for overhead lines.

2 Prodotti

Art. 767740 PHE3 6 20 SL

GTIN (EAN) 4013364071063, Codice doganale (EU): 90303370, Peso lordo: 2.15 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1575 / 980 mm
Insertion depth (I_O )	780 / 185 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63 / L 71
Total length (l_G )	1575 / 980 mm
Insertion depth (I_O )	780 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767740 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767740 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767750 PHE3 10 30 SL

GTIN (EAN) 4013364071070, Codice doganale (EU): 90303370, Peso lordo: 2.21 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1675 / 980 mm
Insertion depth (I_O )	880 / 185 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64 / L 71
Total length (l_G )	1675 / 980 mm
Insertion depth (I_O )	880 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Switchgear installations and overhead lines
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767750 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767750 è stato aggiunto al carrello.

Apri Web-Shop

Nominal Voltage Ranges up to 30 kV / 50 Hz, Test Kit, Gear Coupling

With two test prods of Category "S" for switchgear installations and overhead lines and of Category "L" for overhead lines.

2 Prodotti

Art. 767940 PHE3 6 20 SL ZK

GTIN (EAN) 4013364134829, Codice doganale (EU): 90303370, Peso lordo: 2.09 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1650 / 1050 mm
Insertion depth (I_O )	780 / 185 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63 / L 71
Total length (l_G )	1650 / 1050 mm
Insertion depth (I_O )	780 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767940 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767940 è stato aggiunto al carrello.

Apri Web-Shop

Art. 767950 PHE3 10 30 SL ZK

GTIN (EAN) 4013364134836, Codice doganale (EU): 90303370, Peso lordo: 2.14 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

Certificati

Caratteristiche tecniche

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1750 / 1050 mm
Insertion depth (I_O )	880 / 185 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64 / L 71
Total length (l_G )	1750 / 1050 mm
Insertion depth (I_O )	880 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Prodotto 767950 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 767950 è stato aggiunto al carrello.

Apri Web-Shop
