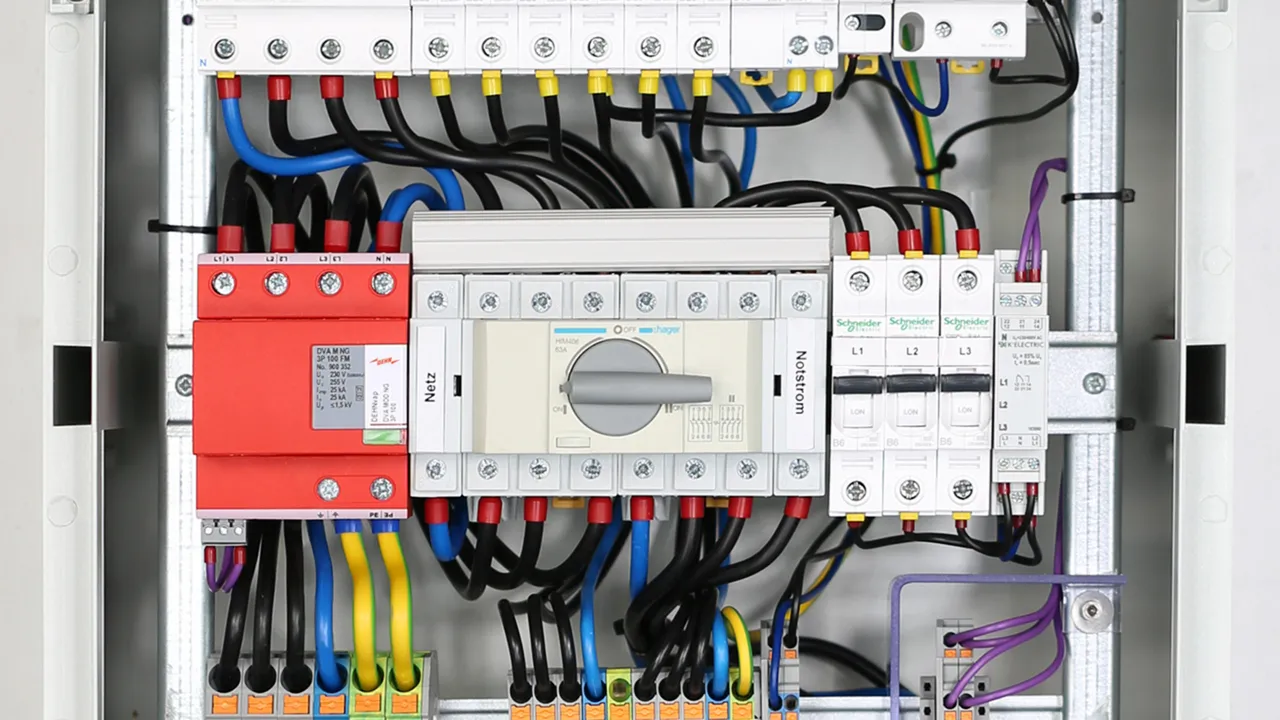

Art. 900352 DVA M NG 3P 100 FM

GTIN (EAN) 4013364455931, Codice doganale (EU): 85363090, Peso lordo: 598.33 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

Brand: DEHN
Type: DVA M NG 3P 100 FM
Part No.: 900352
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz) V
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Operating temperature range [parallel]/[series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm²stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	1.8 kV

Prodotto 900352 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900352 è stato aggiunto al carrello.

Apri Web-Shop

Art. 900351 DVA M NG 1P 50 FM

GTIN (EAN) 4013364455948, Codice doganale (EU): 85363090, Peso lordo: 320.37 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

Brand: DEHN
Type: DVA M NG 1P 50 FM
Part No.: 900351
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz) V
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Specific energy [L+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Operating temperature range [parallel]/[series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	1.8 kV

Prodotto 900351 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900351 è stato aggiunto al carrello.

Apri Web-Shop

Art. 900360 DVA CSP 3P 100 FM

GTIN (EAN) 4013364111332, Codice doganale (EU): 85363090, Peso lordo: 1.34 kg, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

Brand: DEHN
Type: DVA CSP 3P 100 FM
Part No.: 900360
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 240 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	315 A gG
Max. backup fuse (L) up to I_K > 25 kA_rms	200 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C / -40°C...+60°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L1', L2, L2', L3, L3', N, N', PE, 9 ) (min.)	10 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (L1', L2', L3', N', 9 ) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	8 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Prodotto 900360 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900360 è stato aggiunto al carrello.

Apri Web-Shop

Art. 900367 DVA CSP 3P 100 S FM

GTIN (EAN) 4013364322288, Codice doganale (EU): 85363090, Peso lordo: 529.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNvap CSP 3P 100 S FMTT 255 FM combined arrester
Four-pole combined arrester for 230/400 V TT und TN (C)-S systems
Width: 4 mod., With remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DVA CSP 3P 100 S FM
Part No.: 900367
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Characteristic at U = 320 V and I_SCCR = 13.5 kA in combination with a fuse 63 A gG	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	≤ 2.0 kV

Prodotto 900367 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900367 è stato aggiunto al carrello.

Apri Web-Shop

Art. 900366 DVA CSP 1P 50 S FM

GTIN (EAN) 4013364374669, Codice doganale (EU): 85363090, Peso lordo: 265.52 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNvap CSP 1P 50 S FM combined arrester
Two-pole combined arrester
for 230/400 V TT systems,
SPD type 1 + type 2 in accordance with EN 61643-11
Width: 2 mod., With remote signalling contact
For use in compact and simply equipped electrical
installations with reduced technical requirements
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DVA CSP 1P 50 S FM
Part No.: 900366
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Characteristic at U = 320 V and I_SCCR = 13.5 kA in combination with a fuse 63 A gG	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Prodotto 900366 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900366 è stato aggiunto al carrello.

Apri Web-Shop

Results for products (0)

Results for content (0)

DEHNvap

DVA M NG 3P 100 FM

Art. 900352 DVA M NG 3P 100 FM

Prodotto 900352 è stato aggiunto al blocco note.

Prodotto 900352 è stato aggiunto al carrello.

DVA M NG 1P 50 FM

Art. 900351 DVA M NG 1P 50 FM

Prodotto 900351 è stato aggiunto al blocco note.

Prodotto 900351 è stato aggiunto al carrello.

DVA CSP 3P 100 FM

Art. 900360 DVA CSP 3P 100 FM

Prodotto 900360 è stato aggiunto al blocco note.

Prodotto 900360 è stato aggiunto al carrello.

DVA CSP 3P 100 S FM

Art. 900367 DVA CSP 3P 100 S FM

Prodotto 900367 è stato aggiunto al blocco note.

Prodotto 900367 è stato aggiunto al carrello.

DVA CSP 1P 50 S FM

Art. 900366 DVA CSP 1P 50 S FM

Prodotto 900366 è stato aggiunto al blocco note.

Prodotto 900366 è stato aggiunto al carrello.

DEHNvap

DVA M NG 3P 100 FM

Art. 900352 DVA M NG 3P 100 FM

Non siete autorizzati per eseguire un download 900352.stp

Non siete autorizzati per eseguire un download 900352.igs

Non siete autorizzati per eseguire un download 900352.jt

Non siete autorizzati per eseguire un download 900352.dwg

Non siete autorizzati per eseguire un download 900352m_D.dxf

Non siete autorizzati per eseguire un download DEHN.900352.edz

Prodotto 900352 è stato aggiunto al blocco note.

Prodotto 900352 è stato aggiunto al carrello.

DVA M NG 1P 50 FM

Art. 900351 DVA M NG 1P 50 FM

Non siete autorizzati per eseguire un download 900351.stp

Non siete autorizzati per eseguire un download 900351.igs

Non siete autorizzati per eseguire un download 900351.jt

Non siete autorizzati per eseguire un download 900351.dwg

Non siete autorizzati per eseguire un download 900351m_D.dxf

Non siete autorizzati per eseguire un download DEHN.900351.edz

Prodotto 900351 è stato aggiunto al blocco note.

Prodotto 900351 è stato aggiunto al carrello.

DVA CSP 3P 100 FM

Art. 900360 DVA CSP 3P 100 FM

Non siete autorizzati per eseguire un download 900360.stp

Non siete autorizzati per eseguire un download 900360.igs

Non siete autorizzati per eseguire un download 900360.jt

Non siete autorizzati per eseguire un download 900360.dwg

Non siete autorizzati per eseguire un download 900360.dxf

Prodotto 900360 è stato aggiunto al blocco note.

Prodotto 900360 è stato aggiunto al carrello.

DVA CSP 3P 100 S FM

Art. 900367 DVA CSP 3P 100 S FM

Non siete autorizzati per eseguire un download 900367.stp

Non siete autorizzati per eseguire un download 900367.igs

Non siete autorizzati per eseguire un download 900367.jt

Non siete autorizzati per eseguire un download 900367.dwg

Non siete autorizzati per eseguire un download 900367.dxf

Prodotto 900367 è stato aggiunto al blocco note.

Prodotto 900367 è stato aggiunto al carrello.

DVA CSP 1P 50 S FM

Art. 900366 DVA CSP 1P 50 S FM

Non siete autorizzati per eseguire un download 900366.stp

Non siete autorizzati per eseguire un download 900366.igs

Non siete autorizzati per eseguire un download 900366.jt

Non siete autorizzati per eseguire un download 900366.dwg

Non siete autorizzati per eseguire un download 900367.dxf

Prodotto 900366 è stato aggiunto al blocco note.

Prodotto 900366 è stato aggiunto al carrello.
